AX 2012 CU4 Upgrade

AX 2012 Process flow: Hi all now we jump in new concept that is CU4. for AX 2012 R2 upgrade CU4 will come in picture which is mandetory for the AX 2012 r2.


Step 1. Install all components Except DB









Step 2. run schema command on the DB

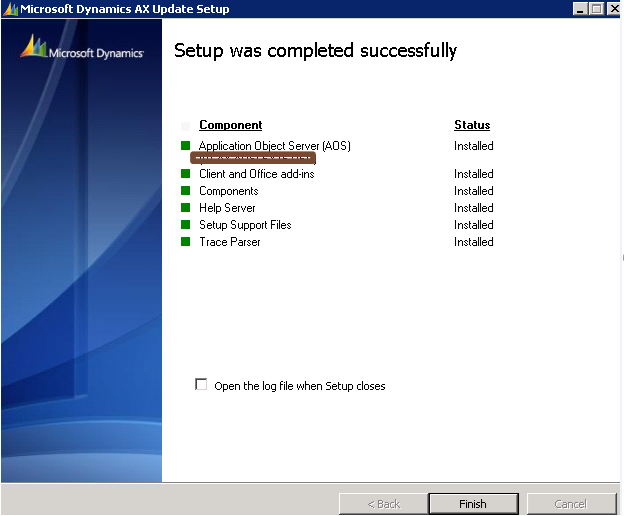

  Step 3. run CU4 installable and check DB only



 Step4. Select start the S/W update check list and complete it

Step 5. below is the check list which should complete successfully

Step 6. At last check the version and installed model it should match to the CU4 one.

How to install and configure AX 2012 dynamics connector

How to install and configure AX 2012 dynamics connector

1.       Install Business connector XPO

2.       Merge the code if any error occurred

3.       Run the class dynamics connector

4.       Check the dynamics connector default service in the inbound port it should activate

5.       Open connector

6.       Adapter setting

7.       Click on refresh services button

8.       Check all services along with connector services

9.       Click on configure button

Dynamics CRM Connector error

Error: value cann't be null. Parameter name:type

Occurrence: This error occurred while we try to configure services through connector.

Reason: This error occurred if we have checked customized document check box but not select any data policy in the inbound port.

Solution: cleared check box as shown in the screen shot.

Dynamics Connector error in AX 2012

Error: An Exception of type MataDataException has occured while performing the operation

Occurrence: This error occurred and we try to refresh services in dynamics connector adapter.

Reason: This error occurred while any objects not have reference. In our case we have uninstalled RF Smart. But some objects have left to delete. And they have no reference.

Solution: Delete unreferenced objects( for track that object browse file in C:\ProgramData\Microsoft Dynamics\Connector for Microsoft Dynamics\Logs).
